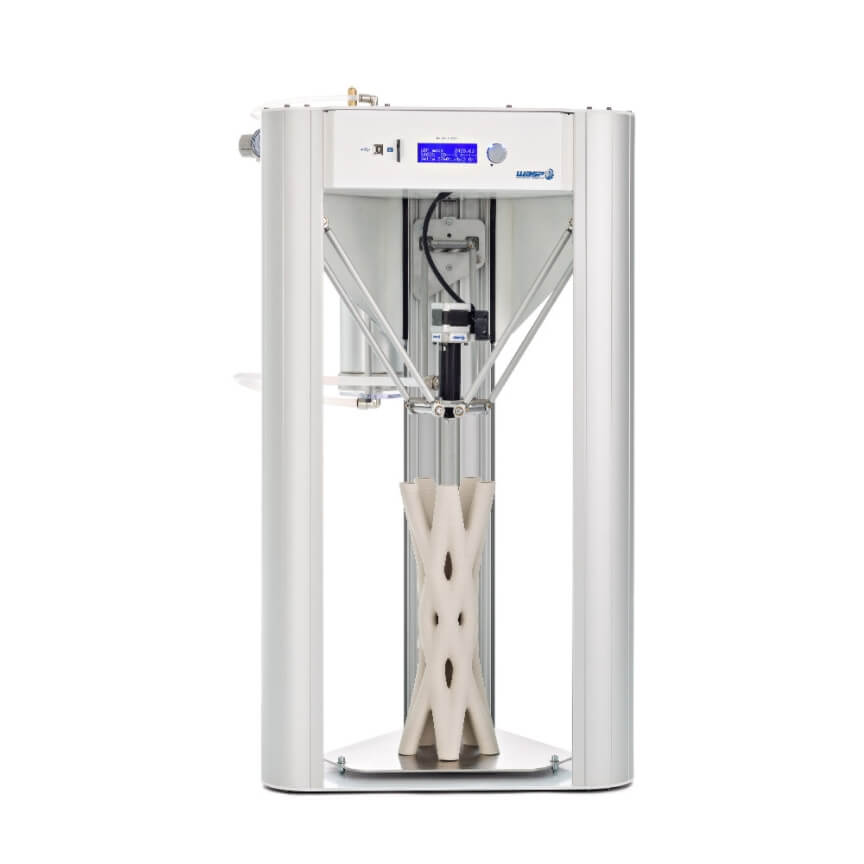

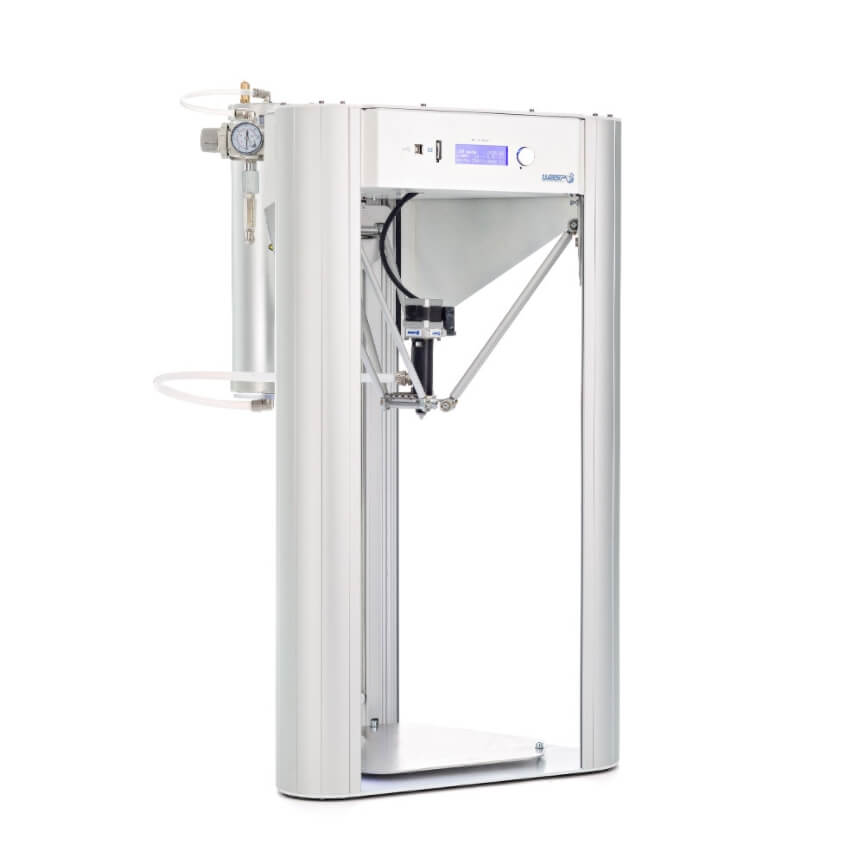

Delta WASP 2040 Clay
Accurate and fast using all ceramic materials. The clay 3D printer is open and accessible on three sides to interact during the prints. Compact professional clay 3D printer prints up to 40 cm in height.
Made in Italy delta 3D printer, with a clean design and compact dimensions. The aluminium and steel structure guarantees stability and precision, obtaining quality prints with dense fluid materials.
Specifications
- Printing volume: Ø200mm x h400 mm;
- Minimum layer height: 0,5 mm;
- Maximum print speed: 150 mm/s;
- Maximum travel speed: 150 mm/s;
- Acceleration: 500 mm/s2.
MATERIALS
- Porcelain
- Earthenware
- Gres
- Clays and More
SUITABLE TOOLS
- LDM WASP Extruder with 1.2mm, 2 mm nozzle (standard)
SOFTWARE
- Operative systems: WIndows, Mac, Linux;
- Slicing software compatible with all slicing software (Cura – SLic3r – Simplify3D®);
- File type: .stl, .obj, .gcode;
INTERFACE
- SD Card
- LCD Screen
PHYSICAL DIMENSIONS
- Input 220/240 V 50/60 Hz (110 V available)
- Absorbed power 180 W
- N.B. air compressor needed (min. pressure 8 bar)
TEMPERATURE
- Use: 20-30 C°;
- Warehouse: 0-30 C°;
MECHANICS
- Frames and carters metal sheet (lowers the machine vibrations, grants the best print quality), aluminum, painted steel
- Print bed bed in wooden multi-layer
- Movements guides on anodized aluminum, open sides give the possibility to stop the printer and interact with the part during the print
TECHNICAL INNOVATION
- Extruder with controlled dosage thanks to a screw (2013)
- Controlled air pressure on the printer
- Perfect stability thanks to new sliding-system on bearings
- Air pipe connection integrated into the printer
- Dedicated Firmware
EXTRA
RESURRECTION SYSTEM
A system which allow users to save their print job and resume it in the case of power failure.
FREE Z-SYSTEM
The machine measures the height of interruption of the print and it restarts there.
