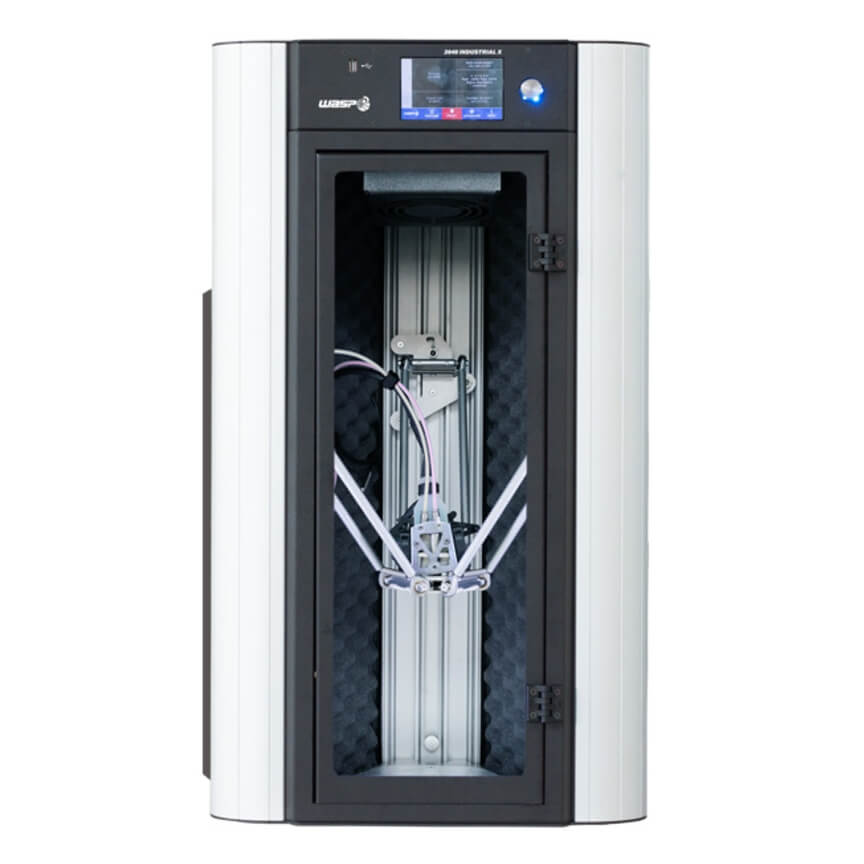

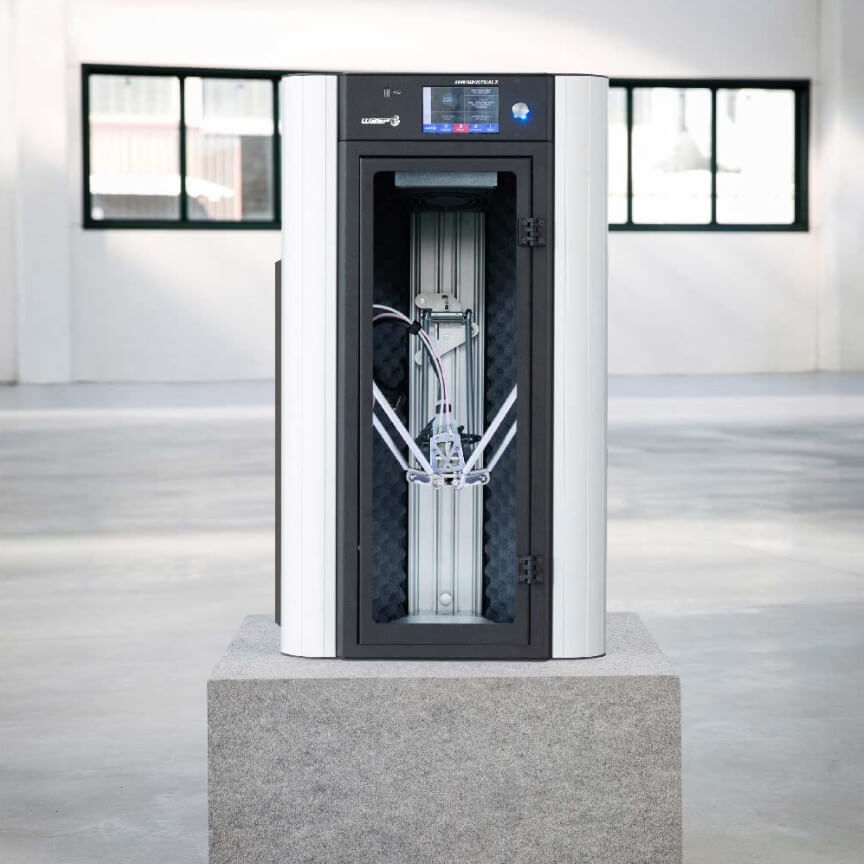

Delta WASP 2040 INDUSTRIAL X
This industrial delta printer is manufactured in metal with strong steel cored belts and features thermal and acoustic insulation.
“Hot and Cold technology” allows the control of room temperature up to 70°C and cools down the mechanics making the print of technical materials easier.
Switching the dual extruder “WASP ZEN X Extruder ” for single and multi-material printing or with “WASP FLEX Extruder” for printing flexible materials (down to shore 50A) just takes a few minutes.
Delta WASP 2040 Industrial X can be connected to a Wi-Fi network so that you can manage your printer from a smartphone, tablet or PC. Inside the printer, there’s now a camera for monitoring the print even from afar.
Specifications
- Build Volume: Ø 200 x h 400 mm
- Heated Active Chamber Heated: up to 70°C
- Minimum Layer Height 50 micron
- Print Speed Max (*): 300 mm/s
- Travel Speed Max(*): 500 mm/s
- Acceleration (*): 10.000 mm/s2
- Bed Temperature Max: 120 C°
- Extruder / Nozzle Diameter: Standard, WASP ZEN X Extruder with MT Cartridge, Nozzle 0,4 mm
* All data relative to speed make reference to a Delta WASP 2040 Industrial 4.0 with WASP ZEN X Extruder 0.4 mm
MATERIALS
- WASP Materials
- Suitable filaments Ø1.75 with “WASP ZEN X Extruder”
- Ø2.85 with “WASP FLEX Extruder”
- ABS WASP
- HIPS WASP
- PA CARBON WASP
- PMMA WASP
- TPU *only with WASP FLEX Extruder
- PLA
- PETG
- PC
- PC+ABS
- PPS
- PVA
- ASA
- TPE *only with WASP FLEX Extruder
- PP *only with WASP FLEX Extruder
SUITABLE TOOLS
- ZEN X EXTRUDER: Dual extruder for single material, multicolor or multimaterial prints, with end filament sensor.
- Nozzle Diameter: 0.4 mm, 0.7 mm (filament diameter 1.75 mm)
- FLEX EXTRUDER: Direct driven extruder for flexible material down to shore 50A.
- Nozzle Diameter: 0.4 mm (filament diameter 3 mm)
SOFTWARE
- Operative System: Windows, Mac, Linux
- Slicing Software Compatible: Compatible with all slicing softwares (Cura – SLic3r – Simplify3D®)
- File Type: .stl, .obj, .gcode
INTERFACE
- Pendrive USB
- Wifi Network
- Display TFT Touch
PHYSICAL DIMENSIONS
- Dimensions: 49 cm x 44 cm x 87 cm
- Machine Weight: 38 kg
- Packaging Dimensions: 50 cm x 58 cm x 114 cm, Weight 42 kg
SUPPLY
- Input: 220/240 V 50/60 Hz (110 V available)
- Absorbed Power
- WASP ZEN Extruder: 120 W max
- Hot Bed: Max 500 W
- Room Heater: Max 750 W / average 300 W
TEMPERATURE
- Use: 20-30 C°;
- Warehouse: 0-30 C°;
MECHANICS
- Frame and Cover: Aluminum, steel, polycarbonate, PU. All metal body for a stiff and vibration free precise machine
- Bed: Machined aluminum
- Movements: Nylon wheels on anodized aluminum sliders, PU steel core belts, resistant to high temperature
- Insulation: Polymer foam for thermo-acoustic insulation.
- Motors: Stepper
TECHNICAL INNOVATION
- Continuous Print: when the used extruder runs out of filament, the print continues with the other extruder (if correctly loaded)
- Bed Touch System: automatic system that avoids the collision of the extruder on the plate.
- Gcode Analyzer: gcode error checking system.
- Auto Check System: automatic error recognition routine
- Mesh Auto Calibration: Mesh plate calibration
- Hot and Cold tecnology heated chamber and cooling of the mechanics
- WIFI machine connected to the network for monitoring and control
- New GUI new touch interface with bigger TFT display
- Camera on-board for monitoring and timelapse
- Remote intervention WASP technicians can work from remote on your machine in case of issues
EXTRA
Resurrection System (cc)
The system recovers automatically interrupted prints in case of accidental shutdown or blackouts.
Free Zeta System (cc)
It’s possible to measure the height of interruption of the print and restart from there.
Suspended Bowden (cc)
It makes possible to download the inertia on the hanging rubber-bands, improving like that the printing speed and quality.
