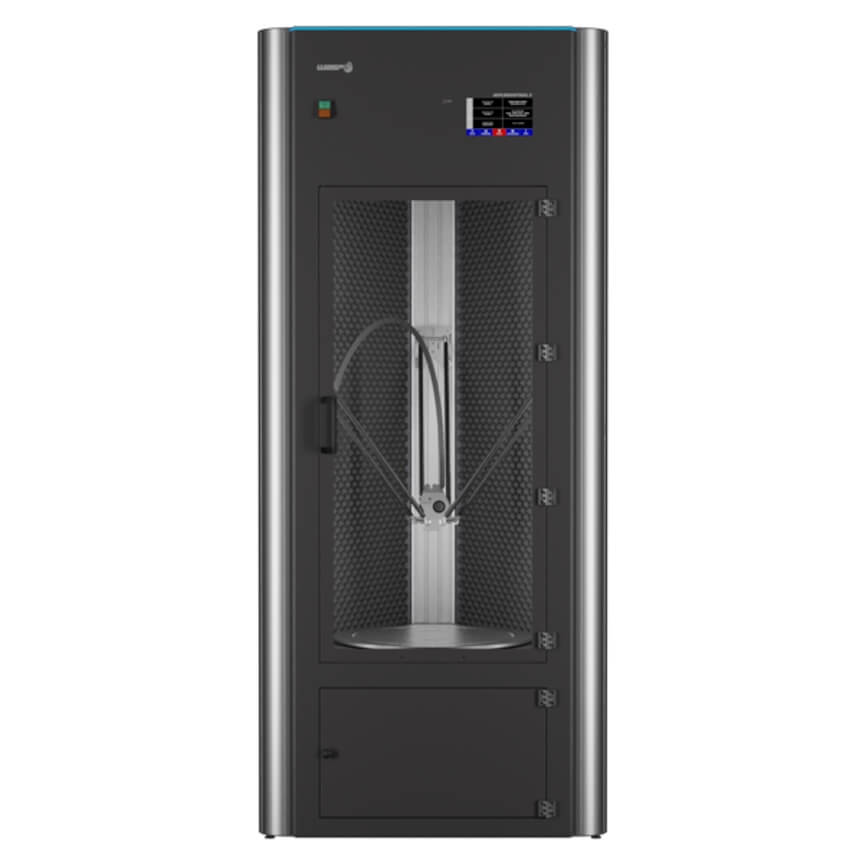

Delta WASP 4070 FX

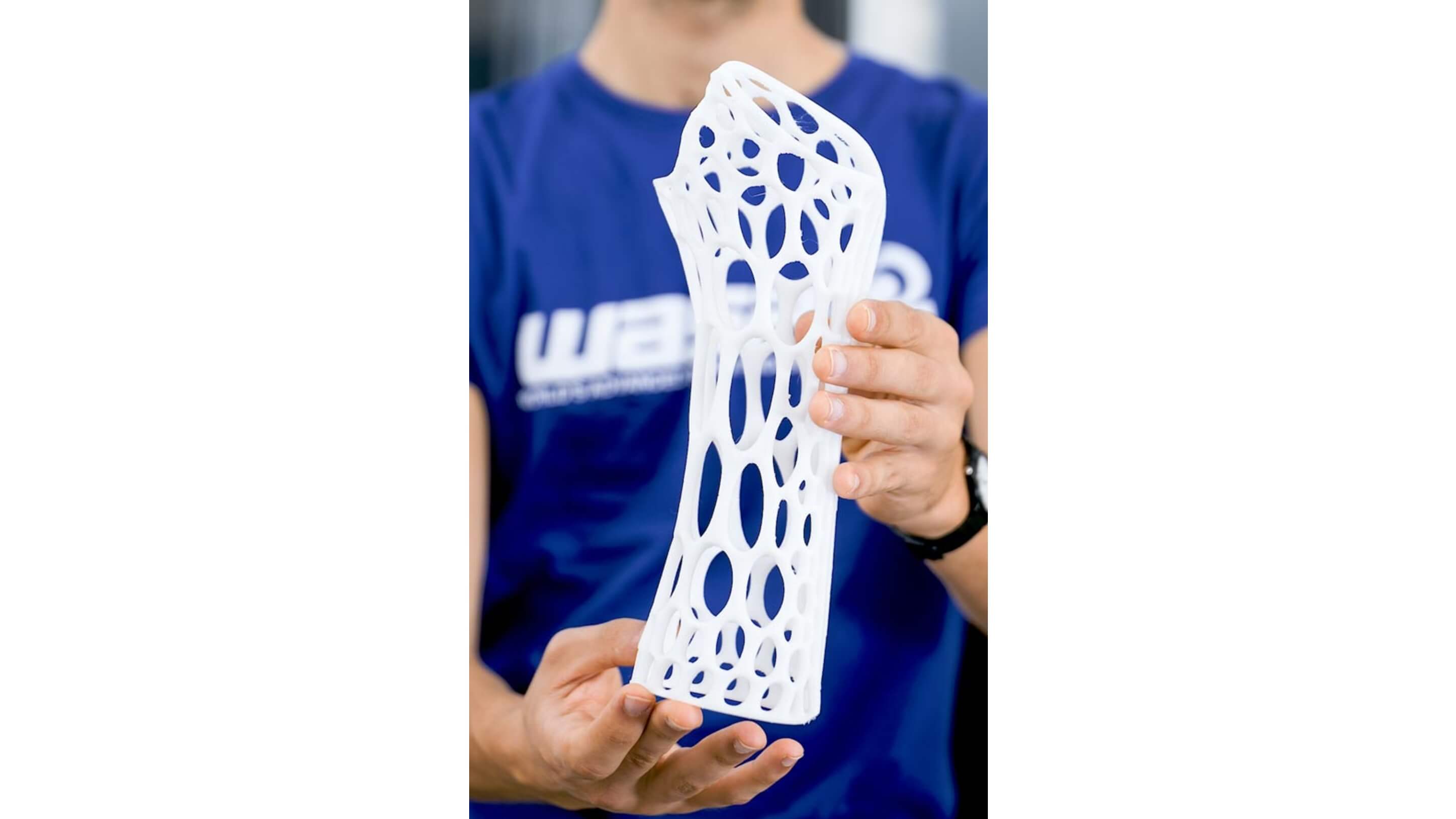

4070 FX is a large format 3D printer, widely used for medical implants, designed to print flexible materials down to 50 shore A, such as TPU.
Specifications
- FFF Technology
- Print Volume: Ø 400 x h 700 mm
- Nozzle Diameter: 0,4 mm
- Layer Resolution: 50 – 350 Micron
- Print Speed: Up to 200mm/s
- Travel Speed: Up to 300mm/s
- Connectivity: WiFi, LAN, USB
- Hotend Temperature Max: 280°C
- Bed Temperature Max: 120°C
- Chamber Temperature Max: 70°C
MATERIALS
- Official WASP Filaments Ø1.75mm
- TPU WASP
- TPE WASP
- PP WASP
- PLA
- PETG
- ASA
- ABS
SOFTWARE
- Official Slicing: Simplify3D® license included
- Compatible Slicing: Cura, Slic3r
- File type: .stl, .obj, .gcode
- Supported OS: Windows, Mac, Linux
INTERFACE
- New GUI 7-inch TFT touch screen display and 60 LED RGB bar
PHYSICAL DIMENSIONS
- Printer Dimensions: 85 x 77 x 195 cm
- Printer Weight: 95 kg
- Packaging Dimension: 100 x 100 x 230 cm
- Weight with Packaging: 250 kg
SUPPLY
- Input: 220/240 V 50/60 Hz (110V available)
- Assorbed Power: Max 3Kw
- Average Power: 0,5Kw
TEMPERATURE
- Use: 20-30 C°;
- Warehouse: 0-30 C°;
MECHANICS
- Frame and cover aluminum, steel, polycarbonate, PU
- Bed machined aluminum and removable plate
- Movements: nylon wheels on anodized aluminum sliders, PU steel core belts, resistant to high temperature
- Insulation polymer foam for thermo-acoustic insulation
- Motors Stepper
TECHNICAL INNOVATION
- Gcode analyzer gcode error checking system
- Auto check automatic error recognition routine
- Remote intervention WASP technicians can work from remote on your board in case of issues
- 32 bit board fast, stable and strong
EXTRA
Resurrection System (cc)
A system which allow users to save their print job and resume it in the case of power failure.
Free Zeta System (cc)
It allows to print a file starting from a precise height of the model to be printed, height previously selected.
