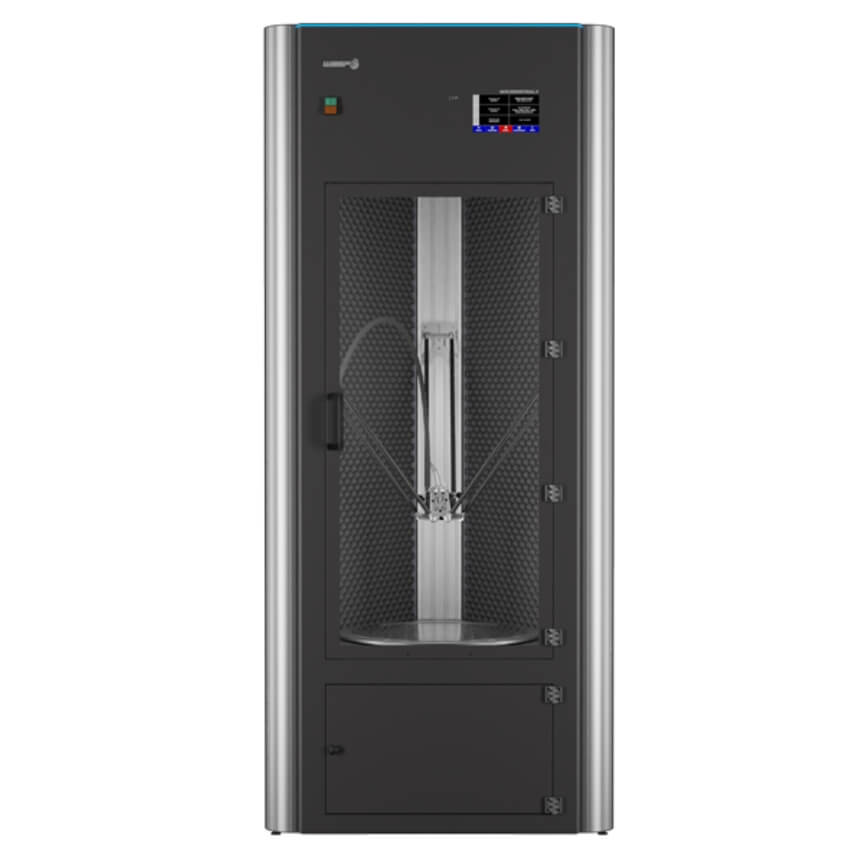

Delta WASP 4070 ZX
4070 ZX is the large format 3D printer designed to print technical and robust materials such as Carbon reinforced PAs.
Specifications
- Print Volume: Ø 400 x h 700 mm
- Nozzle Diameter: 0,7 mm
- Layer Resolution: 50 - 350 micron
- Print Speed: Up to 200mm/s
- Travel Speed: Up to 300mm/s
- Connectivity: WiFi, LAN, USB
- Hotend Temperature: Max 350°C
- Bed Temperature: Max 120°C
- Chamber Temperature: Max 70°C
MATERIALS
- Official WASP Filaments Ø1.75mm
- ABS WASP
- HIPS WASP
- NYLON CARBON WASP
- PMMA WASP
- PLA
- PETG
- PC
- PC+ABS
- PPS
- PVA
- ASA
SOFTWARE
- Supplied Slicing Software: Simplify3D®
- Supported Slicing Software: Cura, Slic3r
- File Type: .stl, .obj, .gcode
- Supported OS: Windows, Mac, Linux
INTERFACE
- 7-inch TFT touch screen display and 60 LED RGB bar
PHYSICAL DIMENSIONS
- Printer Dimensions: 85 x 77 x 195 cm
- Printer Weight: 95 kg
- Packaging Dimension: 100 x 100 x 230 cm
- Weight with Packaging: 250 kg
SUPPLY
- Input: 220/240 V 50/60 Hz (110V available)
- Power Consumption: Max 3Kw
- Average Power Consumption: 0.6Kw
TEMPERATURE
- Operating Temperature: 15-30°C
- Storage Temperature: 0-30°C
MECHANICS
- Frame: Aluminum, steel, laminated glass.
- Bed: Machined aluminum with interchangeable plates.
- Movement: nylon wheels on anodized aluminum sliders, PU steel core belts.
- Insulation: thermo-acoustic polymer foam.
TECHNICAL INNOVATION
- 3X Extrusion Force
- Super Hardened Nozzles
- Continuous Printing
- Hot and Cold Technology
- Easily Interchangeable Printing Plates
- WI-Fi Module
- The All-Metal Double Gear Extruders Offer Twice the Grip and Three Times the Force Compared to Common Extruders.
- Durable Super High-Speed Hardened Steel Nozzles for Long Prints with Abrasive Reinforced Materials.
- Double the Material Available for the Same Print thanks to the Automatic Nozzle Switch Feature.
- Active Heated Chamber up to 70° C and Cooled Mechanics.
- Easy Adhesion and Removal of the Print with Vacuum Active Control System and Dedicated Buildplates.
- Machine Connected to the Network for Monitoring and Control
EXTRA
Resurrection System (cc)
A system which allow users to save their print job and resume it in the case of power failure.
Free ZETA System (cc)
It allows to print a file starting from a precise height of the model to be printed, height previously selected.
