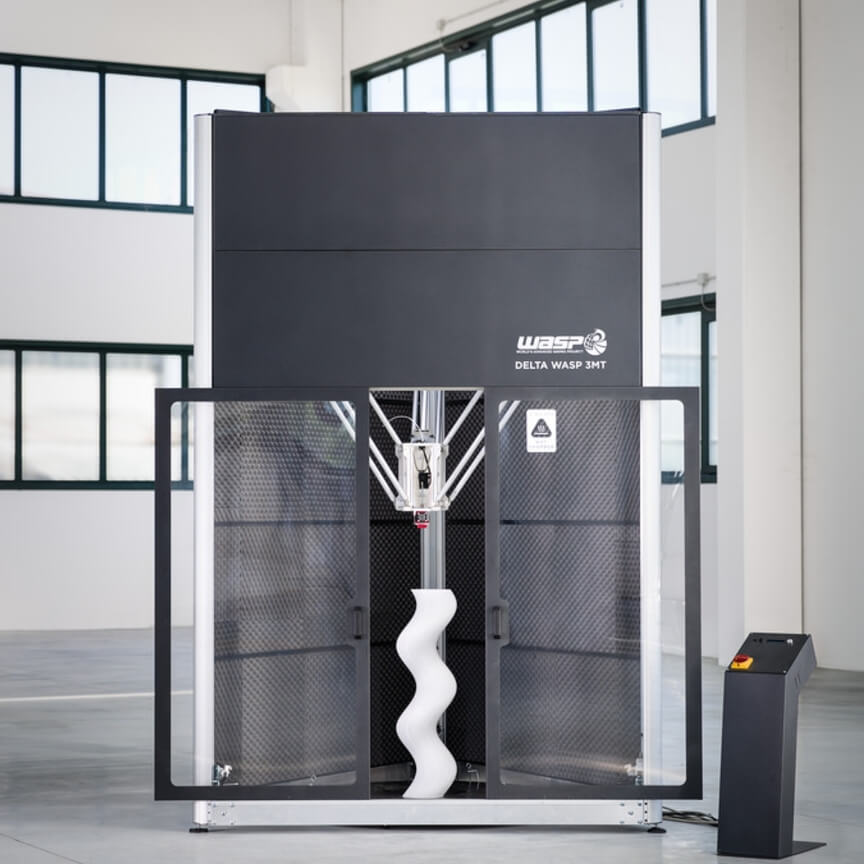

WASP 3MT HDP
The 3MT HDP features new brushless motors, that make it silent, it can be used in an office or in exhibition areas while staying below the permitted noise limit values. It’s stronger and more precise, with pneumatic brakes, to ensure maximum safety in every condition. The chassis is now equipped with a 2B2 class laminated safety glass for thermo-acoustic insulation, furthermore, the fume extraction unit equipped with HEPA, activated carbon and dust filters guarantees a purified environment without odours.
The user experience has been further simplified with the adoption of a new 7-inch TFT touch display and an LED bar located at the top of the printer, which allows you to recognize the working status remotely.
Specifications
- HDP Technology
- Print Volume: Ø 1000 x h 1000 mm
- Max Output: 3.8 kg/h with ABS WASP and 5 mm nozzle
- Standard Nozzle Diameter: 3 mm
- Compatible Nozzle Diameter: 2 mm / 3 mm / 5 mm
- Pellet Used: Ø da 2 a 6 mm
- Layer Resolution: Min 0,5 mm (with a 2 mm nozzle) – Max 2,5 mm (with a 5 mm nozzle)
- Print Speed: 100 mm/s
- Travel Speed: 200 mm/s
- Connectivity: WiFi, LAN, USB
- Hotend Temperature Max: 350°C
- Chamber Temperature Max: 150°C
MATERIALS
- Official WASP Pellets Ø 2-6 Mm
- Pla Pellet WASP
- Abs Pellet WASP
- Recycled Pellets Ø 2-6 Mm
- Pla Pellet 100% Recycled
- Pet Pellet 100% Recycled
- Pla Wood Pellet
- Asa Pellet
- Plasmix Pellet
SOFTWARE
- Official Slicing: Simplify3D® license included
- Compatible Slicing: Cura, Slic3r, AiSync
- File Type: .stl, .obj, .gcode
- Supported OS: Windows, Mac, Linux
INTERFACE
- 7-inch TFT touch screen display and 60 LED RGB bar
PHYSICAL DIMENSIONS
- Printer Dimensions: 215 cm x 235 cm x 305 cm
- Printer Weight: 250 kg
- Space for Assembly: 5,5 mt x 2,5 mt x h 3,60 mt
- Packaging: Wooden Crates for National/International Shipping.
- Crates A: 310 x 60 x 55 cm
- Crates B: 227 x 60 x 136 cm
- Crates C: 120 x 120 x 50 cm
- The machine travels disassembled and it’s assembled in the work space.
SUPPLY
- Input: 220/240 V 50/60 Hz (110V available)
- Assorbed Power: Max 5Kw
- Average Power: 1,5Kw
- Air Compressor: 8bar, 50L. tank, 6x8mm pipe
TEMPERATURE
- Operating Temperature: 15-30°C
- Storage Temperature: 0-30°C
MECHANICS
- Frame: aluminum, steel, laminated glass.
- Bed: machined aluminum with interchangeable plates.
- Movement: nylon wheels on anodized aluminum sliders, PU
steel core belts. - Insulation: thermo-acoustic polymer foam.
EXTRA
Resurrection System
A system which allow users to save their print job and resume it in the case of power failure.
Free Zeta System
It allows to print a file starting from a precise height of the model to be printed, height previously selected.
